SENSYS 165° NO SOFT CLOSE SCREW ON

Stock Code:
9099600

Details

  • Pky Qty:
    1
Price:
$14.01

Description

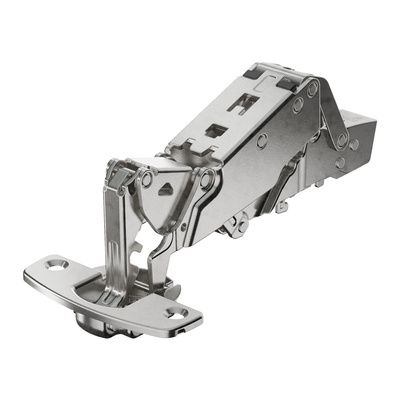

Sensys 8657, Base 12.5 mm, TH 52, Screw-on

•Cup hinge with clip on installation without integrated Silent System
•Quality classification under EN 15570, Level 3
•For door thickness of 15 – 32 mm
•Cup diameter 35 mm
•Cup depth 11.6 mm
•Integrated +/- 2 mm overlay adjustment
•Integrated depth adjustment +3 mm / - 2 mm
•Height adjustment at mounting plate
•Mounting Plate needs to be ordered separately
•Opening angle can be reduced by means of optional accessory
•Zero protrusion hinge
•Hinge arm material: steel, nickel plated
•Hinge cup material: steel, nickel plated
