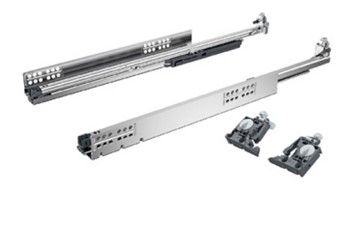

QUADRO V6 5D 250MM 30KG SILENT SYSTEM KIT
Details
-
Pky Qty:1
Downloads
Description
Full extension runner Quadro V6 5D M (30 kg) with Silent System, compatible with Push to open Silent, 250 mm,
Slide on installation with 2D catches for height and side adjustment, integrated depth adjustment, integrated tilt adjustment, integrated radial adjustment
Integrated Silent System
Adjustments all tool-lees: height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to + 2/- 1 mm, tilt adjustment up to + 4 mm and radial adjustment up to +/- 1.5 mm
Optional: Push to open Silent opening system
Optional: synchronisation / multi synchronisation for Push to open Silent
Optional: pull-out shelf support / pull-out shelf locating catch
Load classes XS (10 kg) / M (30 kg)
Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
Suitable for drawers with a side profile thickness of up to 16 mm
Load capacity to EN 15338, Level 3
Galvanised steel
Advice:
Push to open Silent for Quadro V6 5D with Silent System can be ordered separately
Pull-out shelf support can be ordered separately
Synchronisation / multi synchronisation for Push to open Silent can be ordered separately
Using the pull-out shelf support reduces drawer length by 10 mm (nominal length - 20 mm)
